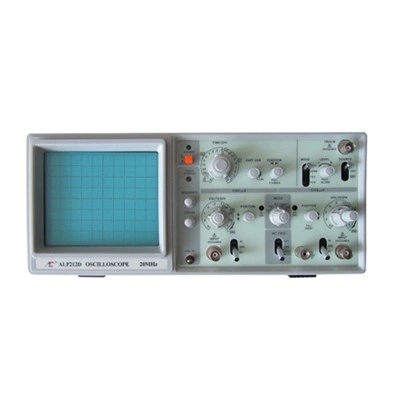

ANALOG OSCILLOSCOPES

SKU: ALP Analogue

Features:

212D    DC-20MHz

214D    DC-40MHz

216D    DC-60MHz

2110D   DC-100MHz



v  Dual channels/dual traces, X-Y mode

v  6" display, high brightness oscilloscope tube

v  High sensitivity triggering, up to 1mV/division clearer display than ordinary oscilloscope

v  TV synchronous separation circuit to observe stable TV signal

v  Triggering mode: AUTO/NORM/AV-V/AV-H

v  Vertical: ALT/CHOP/ADD

v  X-x10/Y-x5

v  Polarity reversal

v  CH1 Sync output

v  Power supply: AC 220V ADN (110V optional)



Specifications:

v  CRT: 6 inches rectangular screen with internal graticule, 8*10div (1 div=1cm).

v  Vertical deflection

v  Display mode: CH1, CH2, CH3, ADD, ALT, and CHOP

v  Deflection factor: 5mV/div to 5V/div±3 %,( 1mV/div to 1V/div±5% at*5), 10steps.

v  Rise time: ≤17.5ns

v  Max. Input voltage: 40v (DC+AC peak value) when≤1KHz

v  Input coupling: AC, DC, Grounding

v  Polarity selection :±( CH2 only)



Horizontal deflection:

v  Display mode: 1, 10, X-Y

v  Time Base: 0.2us/div to 0.5s/div, 20 range

v  Sweep expansion width:*10

v  Accuracy: ±3%



Triggering System:

v  Triggering mode: NORM, AUTO, TV-V, TV-H

v  Triggering source: CH1, CH2, LINE, EXT

v  Sensitivity and Frequency:

Auto: 20Hz---100MHz (VERT)

Norm: 0.5div int, 0.8Vp—p EXT

0.5div INT, 0.5vp---PEXT

TV-H: At least 1 div or 1V p-p,

v  Input impedance: 1MΩ



X-Y Operation:

v  X-Y Phase difference: ≤3o, DC--50 KHz



Others:

v  Calibration waveform: Frequency: 1KH 20%, Voltage: 0.5v1%

v  Power supply: AC 220V/110V±10%, 50/60Hz

v  Dimensions: 370*310*130mm
