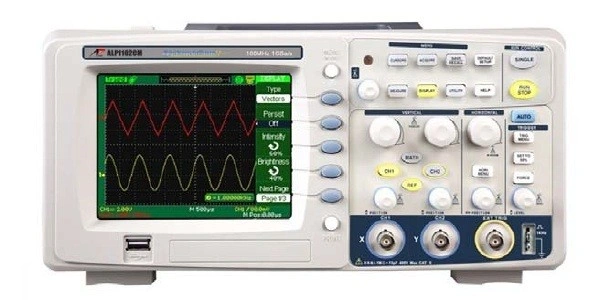

ALP1000CM Series

SKU: ALP1000CM Series

ALP1152CM 150MHZ, ALP1102CM 100MHZ, ALP1062CM 60MHZ

Oscilloscopes South Africa



Product Description:

Design and debug in electron circuitry

View moment signal

Industry controlling measure

Product quality control

Education and training

Serving and maintaining

Weight:2.3KG

Size:305mm×133mm×154mm(L×W×H)



Technical Parameters:


Model/Index

ALP1152CM

ALP1102CM

ALP1062CM

Bandwidth

150MHZ

100MHZ

60MHZ

Channel

2 channels+1 ext trig

Real Time Sampling

1GSa/s

Equivalent Sampling Rate

50GSa/s

Memory Depth

2Mpts

Rise time

<2.4ns

<3.5ns

<5.8ns

Input Impedance

1MΩ||17Pf

Sec/div Range

2.5ns/div‐50s/div

2.5ns/div‐50s/div

5ns/div‐50s/div



Roll:100ms‐50s/div

Vertical Sensitivity

2mv‐10v/div(1‐2‐5 sequence)

Vertical Resolution

8bit

Display

Colour TFT(320*234)5.7" LCD



Characteristics:

Memory depth of ALP1000CM is 2M.pts.

Max recording length: 6Mpts; Max recording time:33.3h.

The volume exquisite and it is convenient for carrying.

Use Coloured TFT LCD, the waveform display is clearer and stable.

Screen saver function:1 minute to 5 hours.

Dual channel‐channel bandwidth: 60MHZ‐150MHZ.

The real time sampling rate is 1GSa/s.

Trigger Modes: Edge, Pulse, Video, Slope and Alternative trigger modes.

Unique Digital Filter function and Waveform recorder function.

Pass/Fail function.

Thirty two parameters Auto measure function.

Cursor measure covers Manual mode, Track mode and Auto mode.

Channel waveform and its FFT waveform display on split screen.

Pop‐up Menu display pattern is more convenient for users using it.

Multiple Language User Interface.

Support multilingual online help system.





Model/Index

The Common Specifications Of All ALP1000CM Series Products

Display

8X12 divides

Waveform Capture Rate

The highest capture rate exceed 1000 times/sec

Input coupling

DC, AC, GND

Input Max voltage

400V(Vpp)

Trigger Types

Edge, Pulse, Video, Slope, Alternative

Trigger Modes

Auto, Normal, Single

Trigger Source

CH1、CH2、Ext、Ext/5、AC Line

Save/Recall

Provide two groups reference waveforms, twenty groups capture waveforms and twenty groups setups internal save/recall function and USB flash drive Save/Recall

function

Auto Measure Types

Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Cmean, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, ‐Width, +Duty, ‐ Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF

Cursor measure

Manual, Track, Auto

Sample Types

Real Time, Equivalent Time

Averages

4、16、32、64、128、256



+、‐、*、Invert

Math

FFT

Window: Hanning、Hanmming、Blackman、Rectangular





Sampling Points: 1024 points

XY Mode

Phase Error: ±3 degrees



Support the sampling rate : 5KSa/s~1GSa/s (in a 1‐2‐5 sequence)

Display Model

Main, Window, Window Zoom, Roll, X‐Y

Menu Display

2Sec, 5Sec, 10Sec, 20Sec, Infinite

Display Language

Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean, Italian

Power Source Voltage

100‐240VAC、47HZ‐440HZ、50VA Max

Size and Weight

305mm x 154mm x133mm, about2.3kg



USB Host: Support USB flash drive storage

Connection

USB Device: Support PictBridge compatible printers and PC Remote control



RS‐232: Support PictBridge compatible printers and PC Remote control



Pass/Fail Interface Module

Accessories

(1:1、10:1) Probex2, EasyScope3.0 Computer Software System, Power Cord, USB cable, User Manual, EasyDsoLib software package



Application Software:

EasyScope3.0 software can connect the ALP1000 series DSO to the PC through USB serial interface or RS‐232 interface
The software can afford controlling and analyzing function such as following items:

Display the captured waveforms data and measurement value by the display areas.

Control the local and distant operation by the DSO controller.

Save the picture as “BMP” format.

Save the data to “EXCEL” file, easy to analyze.

Print or save waveforms.



Easydsolib:

The SDK provides interface function to customers used for secondary development, including DSO sampling data, product
version, waveform date and parameter setting. Automatically measuring parameters, upload or download the DSO settings
or controlling the interface function. Make your development much easier and effective.
