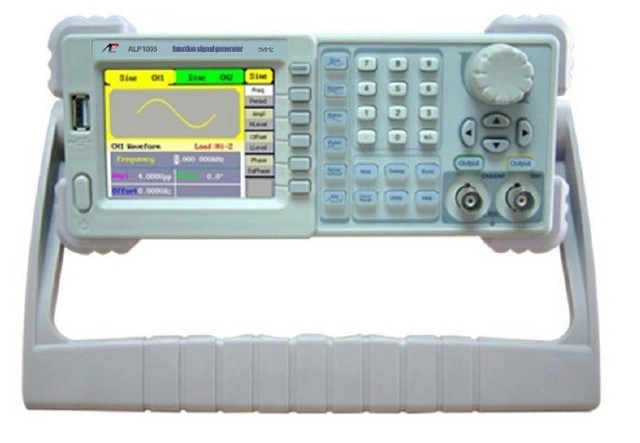

ALP1000 Series True Arbitrary Waveform Function Generator
: ALP1000 series Signal Generator
ALP1000 Series True Arbitrary Waveform Function Generator
Product Description:
• Apply DDS technology, double output, adjustable phase, the highest output frequency is 50MHz.
• 125MSa/s sample rate, 14bit vertical resolution, 16Kpts wave length.
• Output 5 types of standard waveform, internally installed 48 types of waveform;
• Internally installed high precision, wide frequency counter, frequency is up to 200MHz.
• Abundant modulation function, sweep‐frequency output, pulse train output.
• Standard collocation connection: USB Device, USB Host, support U Disk storage and software upgrading; GPIB and LAN port are optional.
• Can connect to ALP1000 series digital oscilloscope perfectly, and support remote command control.
Application:
• Analog Sensor
• Real Environmental Signals
• Circuit Function Test
• IC Test
• Education
Technical Parameters:
|
Model |
ALP1005 |
ALP1010 |
ALP1020 |
ALP1025 |
ALP1050 |
|||
|
Highest frequency output |
5MHz |
10MHz |
20MHz |
25MHz |
50MHz |
|||
|
Output channels |
2 |
|||||||
|
Sample rate |
125 MSa/s |
|||||||
|
Wave length |
16 Kpts (channel one can choose 512Kpts) |
|||||||
|
Frequency resolution |
1 μHz |
|||||||
|
Vertical resolution |
14 Bit |
|||||||
|
Waveform |
Sine wave, square wave, triangular wave, pulse wave, white noise,48 types of function waveform |
|||||||
|
Sine wave |
1μHz ~ 5MHz |
1μHz ~ 10MHz |
1μHz ~ 20MHz |
1μHz ~ 25MHz |
1μHz ~ 50MHz |
|||
|
Square wave |
1μHz ~ 5MHz |
1μHz ~ 10MHz |
1μHz ~ 20MHz |
1μHz ~ 25MHz |
1μHz ~ 25MHz |
|||
|
Pulse |
1μHz ~ 5MHz |
1μHz ~ 10MHz |
1μHz ~ 10MHz |
1μHz ~ 10MHz |
1μHz ~ 10MHz |
|||
|
Ramp |
1μHz ~ 300KHz |
1μHz ~ 300KHz |
1μHz ~ 300KHz |
1μHz ~ 300KHz |
1μHz ~ 300KHz |
|||
|
Gaussian white |
5MHz bandwidth |
10MHz bandwidth |
20MHz bandwidth |
25MHz bandwidth |
50MHz bandwidth |
|||
|
noise |
（‐3dB） |
（‐3dB） |
（‐3dB） |
（‐3dB） |
（‐3dB） |
|||
|
Wave |
1μHz ~ 5MHz |
1μHz ~ 10MHz |
1μHz ~ 10MHz |
1μHz ~ 10MHz |
1μHz ~ 10MHz |
|||
|
Modulation function |
AM，FM，PM，ASK，FSK，PWM etc. |
|||||||
|
Other functions |
Frequency counter: frequency is up to200MHz |
|||||||
|
Standard configuration |
USB Host & Device |
|||||||
|
Optional port |
GPIB(IEEE‐488)，LAN |
|||||||
|
Product classify |
function/waveform generator |
|||||||
|
Size |
Width × height × depth ＝229mm × 105mm × 281mm |
|||||||
