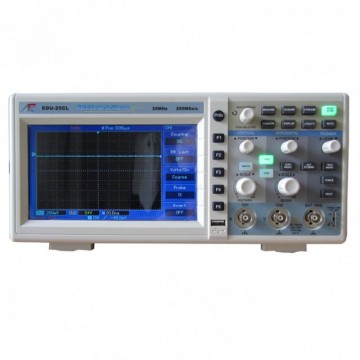

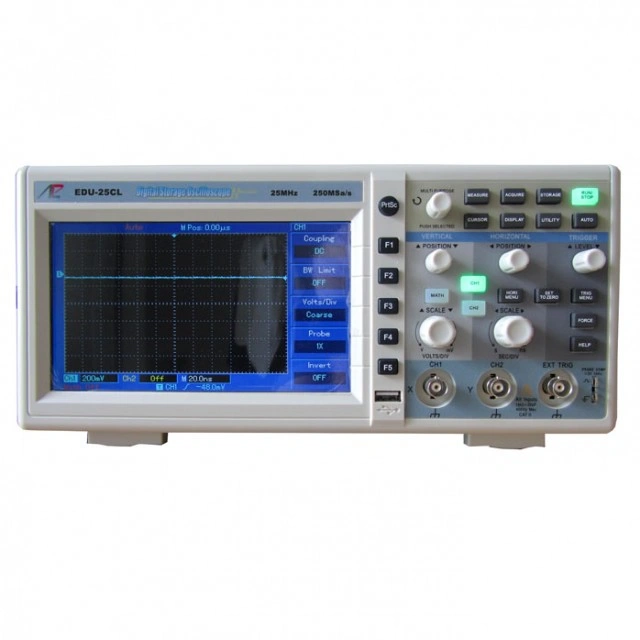

ALP-EDU series Digital Storage Oscilloscope

SKU: ALP Series DSO

ALP-EDU series Digital Storage Oscilloscope


v  Dual analog channels, 1mV/div~20V/div wide test range

v  7.0 inch display TFT color screen

v  Particular screen copy function

v  Support plug and play USB storage device, can connect with PC and remote control by PC

v  Software upgrading by USB host port

v  Waveforms call in and call out

v  Auto test 28 kind of waveform parameters

v  Transcribe and replay waveform functions



MODEL

Bandwidth

Sampling Rate

Memory Depth

Screen

EDU25CL

25MHz

250M Sa/s

25k

7.0 inch TFT

EDU50CL

50MHz

500M Sa/s

1200k

7.0 inch TFT

EDU50CAL

50MHz

1G Sa/s

1200k

7.0 inch TFT

EDU100CAL

100MHz

1G Sa/s

1200k

7.0 inch TFT

Common Specifications

Display

12 divides full screen display, 7.0 inch color TFT   screen, 320*240 resolution

Channels

2

Vertical Sensitivity

1mV/div~20V/div

Vertical Resolution

8bit

Input coupling

DC, AC, GND

Trigger Types

Edge, Pulse, Video, Slope, Alternative, Delay

Trigger Modes

Auto, Normal,   Single

Trigger Source

CH1, CH2, Ext, Ext/5, AC Line

Save/Recall

Provide two groups reference waveforms, twenty   groups capture waveforms and twenty groups setups internal save/recall   function and USB flash drive Save/Recall function

Auto Measure Types

Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean,   Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise   time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR,   FFF, LRR, LRF, LFR, LFF

Cursor measure

Manual, Track, Auto

Sample Types

Real Time, Equivalent Time

Averages

4, 16, 32, 64, 128, 256

Math

+, -, *, /, Invert

FFT

Window: Hanning, Hamming, Blackman,   Rectangular  Sampling Points: 1024   points

XY Mode

Phase Error: ±3 degrees

Support the sampling rate : 5KSa/s~200MSa/s (in a 1-2-5   sequence)

Persist

Off, 1sec, 2sec, 5sec, Infinite

Display Model

Main, Window, Window Zoom, Roll, X-Y

Menu Display

2Sec, 5Sec, 10Sec, 20Sec, Infinite

Display Language

Simplified Chinese, Traditional Chinese, English,   Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean

Power Source Voltage

100-240VAC、47HZ-440HZ、50VA Max

Size and Weight

306mm × 147mm   × 122mm,   about 2.2kg

USB Host

Support USB flash drive storage

USB Device

Support PictBridge compatible printers and PC   Remote control  RS-232

ACCESSORIES

(1:1, 10:1) Probe x 2, Easy Scope Computer   Software System, Power Cord, USB Cable, User Manual
