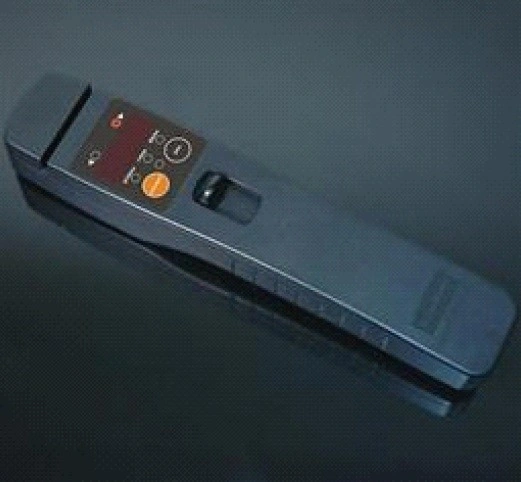

AFI 400/420 Optical Fiber Identifier

: AFI 400/420 Optical Fiber Identifier

AFI 400/420 Optical Fiber Identifier

Features

• Support to detect optical signals without disrupting traffic; Based on non-destructive technology;

• Indicate the signal direction in fiber;

• Detect a variety of optical tones, 270Hz, 1 kHz and 2 kHz;

• Suitable for 0.25, 0.9, 2.0, 3.0mm fiber and no need to replace the clamp block, more convenient than others;

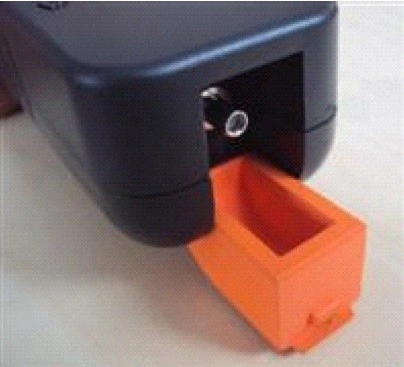

• Build in visible fault locator 1mW or 10mW optional

• Battery low indication;

• powered by 2 units of 1.5V AA alkaline batteries;



Main Characteristic

Model

AFI 400

AFI 420S

AFI 420L

Wavelength Range

800 to 1700nm (SM)

Recognisable signal type *

CW, 2kHz, 1kHz, 270Hz ±10%

Detector Type

InGaAs 2pcs

Fiber Type

0.9, 0.25, 2.0, 3.0mm fiber

Sensitivity

+10 ~ -50dBm

Accuracy*

+10dB to -30 dBm (Continuous Wave)

+10dB to -25 dBm (Modulated Signal)

LED Indicator

Signal direction; signal frequency (2kHz/1kHz/270Hz); low battery

Visual Fault Locator

No

1mW

10mW

Storage Temperature

-200C~+600C, <90%RH

Operating Temperature

-100C~+500C

Power Supply

AA *2

Size

230mm * 45mm *45mm

Weight

About 200g

* at 20±30C, indoor, 1550m wavelength, 0.9mm fiber, with white coat, 270Hz, error < 5%

* 0.25, 2.0, 3.0mm fiber, the performance at continuous wave will be lower

* 1KHz, 2KHz, the performance at modulated signal will be lower

* At 1310nm wavelength, the performance will be lower



Accessories



Standard

User's manual

1

Calibration certification

1

Carrying bag

1
