3Z RF Aligner - Azimuth Antenna Alignment Tool

SKU: 3Z RF Aligner

3Z RF Aligner - Antenna Alignment Tool

Easy and Accurate Antenna Installations

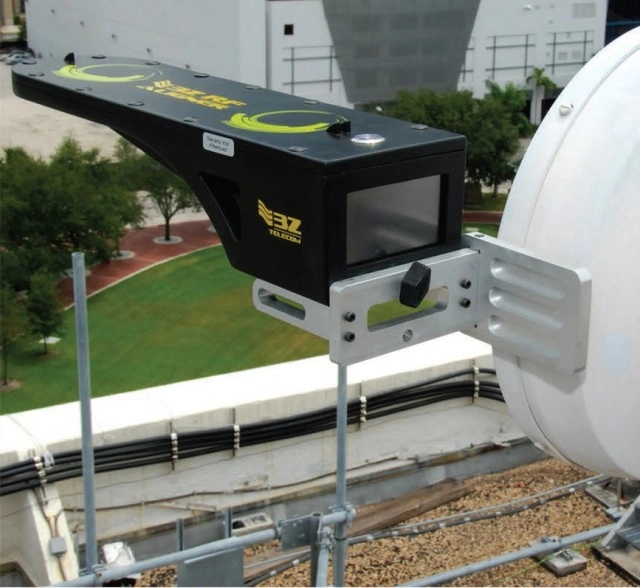

The 3Z RF Aligner is the most compact GPS Antenna Alignment Tool in the industry. It incorporates GPS Technology to calculate precise Azimuth, Tilt, Roll, and AGL measurements for a multitude of directional antenna systems. Our universal antenna mounting system is used for quick antenna attachment and release.

The 3Z Aligner is user friendly easy to transport up any tower. Save all your antenna installation measurements for recordkeeping and reporting, easily accessible over USB.

• Install antennas right the first time. No Go Backs

• Easy to read 4.3" Built-In Colour LCD Display

• Measure Azimuth, Tilt, roll and AGL in one-step

• Microwave Dish Alignment Mode

• Universal Antenna Clamp fits 99% of Panel Antennas

• Record Field Measurements Instantly

• No Post Processing Software required

• Easy USB Plug and Play result retrieval

• Carrier Approved Closeouts

Specifications

3ZRAFA Dimensions

Length:

18.75" (47.6 cms)

Width:

5.375" (13.6 cms)

Height:

4.5" (11.43 cms)

Weight:

3.675 lbs (1.66 kg)

Accuracy

Heading:

<0.75o RMS*

Tilt/Roll:

<0.5o RMS*

Position:

<1m RMS*

Altitude/Height

<2m RMS*

LCD Display

Interface:

Touch

Visibility:

Backlighting

Type:

TFT WQVGA

Size:

4.3"

Battery:

Internal Battery:

Lithium-Ion

Operation Time:

11 Hours

Communications:

Type: Mini-USB

Memory:

Internal, 4GB

Environmental



Operating Temp:

-4 to 1400F (-20 to 600C)

Storage Temp:

40 to 1850F (-40 to 850C)

Humidity:

95% Non-Condensing

Vibration:

IEC60945

EMC: FCC Part 15, SubpartB, CISPR22, CE





On-Screen Data

-Antenna:

Site ID, Sector ID, Antenna ID, Azimuth, Tilt, Roll, Time, Date, height, Datum, Lat/Lon.



-Microwave Dish:

Path Name, Target Lat/Lon, Target Height,

Target Azimuth, Target Tilt, Time, Date, Height,

Datum, Lat/Lon.
